| Performance | Cooling Capacity | Btu / W | 5050 / 2500 |
|---|---|---|---|
| Power | W | 1300 / 450 | |

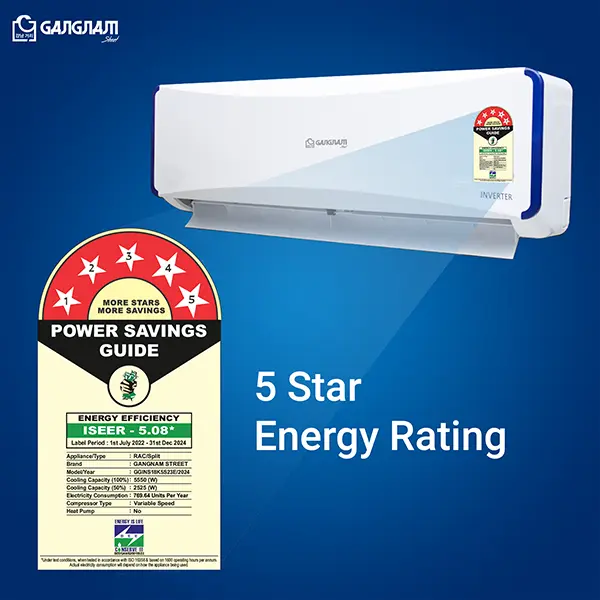

| ISEER | 5.08 | ||
| Star | 5 | ||
| Electrical Data | Voltage | V | 230 |
| Input Range | V | 140V~280V | |
| Compressor | Make | GMCC | |
| Model | KSN108D42UFZ31 | ||
| Indoor Fan Motor | Make | Welling | |
| Model BLDC | ZKFP-35-8-123 | ||
| Speed(Turbo/Hi/Mi/Lo) | RPM | 1400/1200/1100/970 | |
| Evaporator | Row | 2 | |
| Tube Dia | 7 | ||
| Hairpin | 18 | ||
| Fin Colour | Blue | ||
| Indoor Air Flow | Turbo | CMH | 1050 |
| Indoor Noise (Hi/Low Speed) | dBA | 46/55 | |

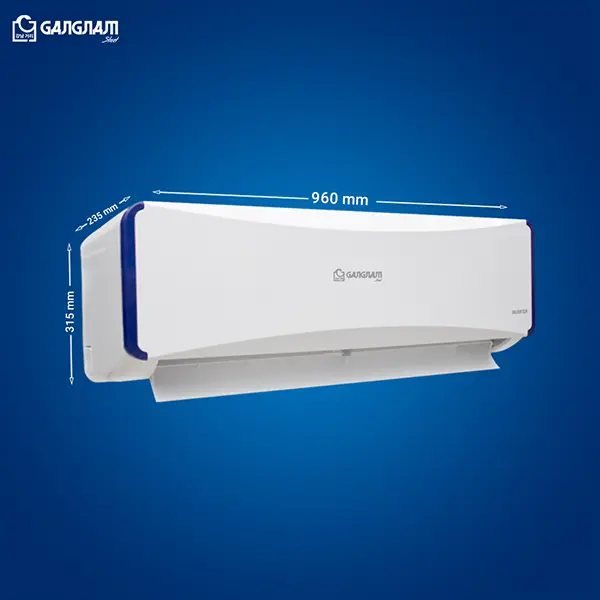

| IDU Dimension | Net Dim(W * D * H) | mm | 960*235*315 |
| Packing Dim(W * D * H) | mm | 1020/380/295 | |
| Net / Gross Weight | Kg | 9.5/11.5 | |
| EEV/Capillary | EVV | ||

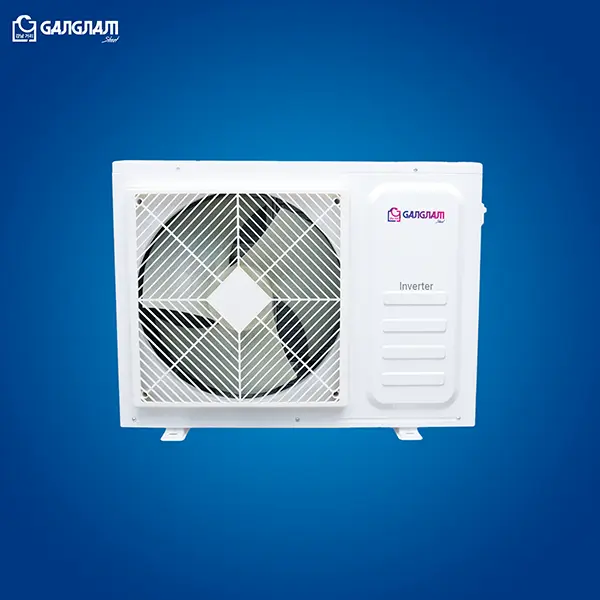

| Outdoor Fan Motor | Make | Wolong /Welling | |
| Model | WZD-A05045D-02AL/Alternate | ||
| Capacitor | mfd | NA | |
| Speed | RPM | 900 | |
| Condenser | Row | 2 | |
| Tube Dia | 5 | ||
| Hairpin | 28 | ||
| Fin Colour | Blue | ||
| Outdoor Noise Level dB | dBA | 62 | |

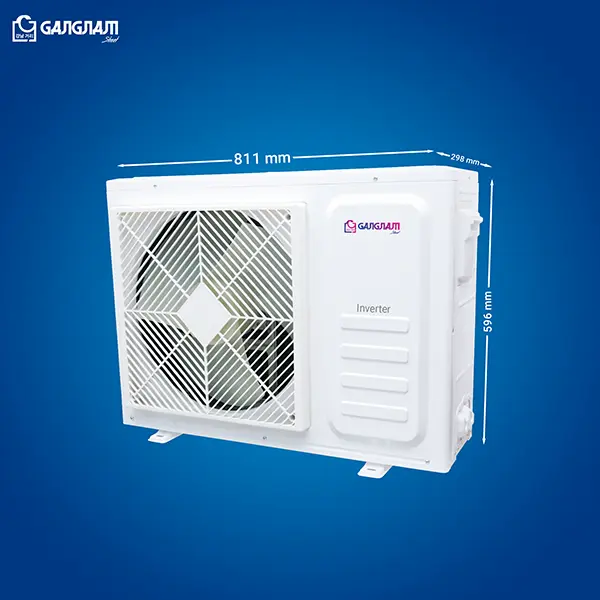

| ODU Dimension | Net Dim(W * D * H) | mm | 811*298*596 |
| Packing Dim(W * D * H) | mm | 870*350*650 | |
| Refrigerant Type | R32 | ||
| Connecting Pipe | Liquid and Gas Side Dia | Dia | 6.35/12.7 |
| Maximum Length | m | 3000 | |
| Maximum Elevation | mm | ||
| Additional Ref gas | gm | 20g/mtr | |
| Ambient Operating Range | °C | 52 | |
| Air Throw | M | 10 |
