| ASPECT RATIO( PANEL) | 16:9 |
|---|---|
| RESOLUTION | 3840 X 2160 , REFRESH RATE: 60 Hz |
| DISPLAY AREA | 1209.60 (H) x 680.40 (V) |
| RESPONSE TIME | 8.0 mS |
| CONTRAST RATIO | '1200:1 |
| VIEWING ANGLE | 178° (H) X 178° (V) |
| DISPLAY COLOR | 1.07B |
| BRIGHTNESS TYP +/- 10% | > 380 nits (BEFORE ADJUST PQ) |
| SELECTABLE PICTURE MODES | 6 MODES | VIVID/STANDARD/APS/CINEMA/CRICKET/GAME |
|---|---|---|
| CONTRAST / BRIGHTNESS / SHARPNESS / COLOR / TINT CONTROL | YES | |
| COLOUR TEMP CUSTOMER CONTROL | YES | |
| NOISE REDUCTION | YES | OFF/LOW/MEDIUM/HIGH/AUTO |
| REAL CINEMA | YES | OFF/ON |
| TRUE MOTION | YES | OFF/CINEMATIC MOVEMENT/ NATURAL/SMOOTH/USER SELECTION |
| DYNAMIC CONTRAST | YES | OFF-LOW-MEDIUM-HIGH |
| DYNAMIC COLOUR | YES | OFF-LOW-MEDIUM-HIGH |
| ASPECT RATIO | YES | 16:9 / ORIGINAL / 4:3 / VERTICAL ZOOM / 4 WAY / ZOOM |
| ENERGY SAVING | YES | OFF/MINIMUM/MEDIUM/MAXIMUM/SCREEN OFF |
| EYE COMFORT MODE | YES | BLUE LIGHT CONTROL |
| HDMI DEEP COLOUR | YES | |
| GAME OPTIMISER MODE | YES | |
| 4K ENHANCER | YES | |
| MEMC | 4K @ 60Hz | |
| DIGITAL COMB FILTER | YES | 3D INBULIT |
| SLEEP TIMER | YES |
| BOX SPEAKER | YES | |
|---|---|---|
| AUDIO OUTPUT POWER (RMS) | 2 x 8W (8Ω) , THD < 10%@1 Khz (Audio Input : 0.5 Vrms) | |
| SPEAKER DIRECTION | DOWN FIRING | |
| SOUND MODE | 5 MODES | STANDARD/CINEMA/CLEAR VOICE III/CRICKET/MUSIC/GAME |
| ULTRA SURROUND SOUND | NO | |
| BLUETOOTH AUDIO PLAYBACK | YES ( 2 WAY PLAYBACK ) | |
| DOLBY | YES |
| WIFI (BUILT IN) | IEEE 802.11a/b/g/n/ac | |
|---|---|---|
| SIMPLINK (HDMI CEC) | YES | |
| eARC | YES | |
| MAGIC MOBILE CONNECTION | YES | |
| BLUETOOTH | BT5.0+HS, BLE | |
| SHARE & CONTROL | YES |
| CHIPSET | REALTEK RDT2874WDA-GR |
|---|---|
| CPU | ARM Quad Core CA75(x2) 1.0GHz, CA55 1.0GHz(x2) |
| GPU | IMG BXE4 GPU (700Mhz) |
| DDR | 1.5G |
| eMMC | 8G |

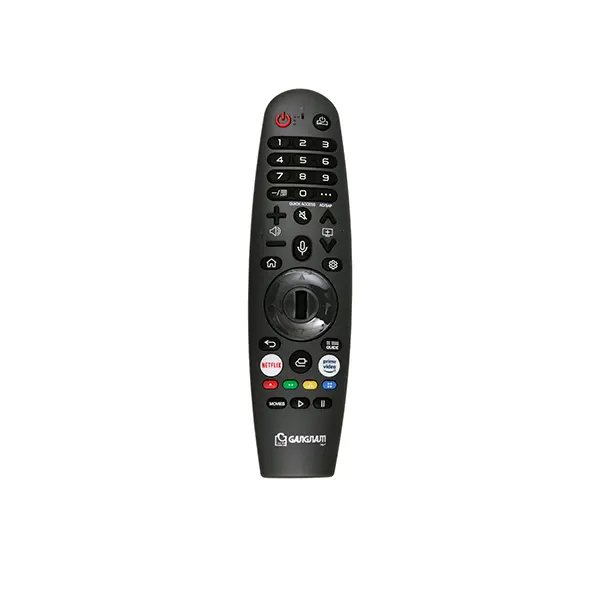

| MAGIC REMOTE CONTROL | YES (UNIVERSAL CONTROL, PONT, CLICK, SCROLL, VOICE) |
| BROWSER SUPPORT | HTML5 |
| APP STORE | YES |
| CERTIFIED OFFICIAL APP | NETFLIX / YOUTUBE / PRIME VIDEO / APPLE TV /HOTSTAR / APPLE MUSIC & …..... |
| HOT KEYS ON REMOTE | NETFLIX / PRIME VIDEO |
| MIRACAST / AIRPLAY | YES |
| MOUSE CURSOR ON REMOTE | YES |
| UNIVERSAL CONTROL FOR SETTOP BOX/SOUND BAR/DVD PLAYER/PS2/XBOX | YES |
| LG ThinQ APP | YES |
| OSD LANGUAGE | ENGLISH |
| RF IN | 1 |
|---|---|
| AV IN | 1 |
| USB 2.0 | 2 |
| HDMI INPUT 2.0 | 3 |
| HDMI AUDIO RETURN CHANNEL | ARC (HDMI 2) |
| RJ45 LAN | 1 |
| EARPHONE OUT | 1 |
| DIGITAL AUDIO OUTPUT (OTICAL) | 1 |
| OPERATING VOLTAGE RANGE | AC 100V - 240V, 50/60Hz |
|---|---|
| POWER CONSUMPTION (MAX) | 140W |
| POWER CONSUMPTION IN STANDBY MODE | ≤0.5W |
| ANNUAL ENERGY CONSUMPTION (AEC) | NA |
| WALL MOUNT | YES |
|---|---|
| BASE STAND (ABS, BLACK) | YES |
| USER MANUAL | YES |
| MAGIC REMOTE CONTROL | YES |
| BATTERY | 2 X AA |
| COLOR SCHEME | BLACK |
|---|---|
| NET WEIGHT | 11.1 Kg |
| GROSS WEIGHT | 17 Kg |
| SET DIMENSION (WITH STAND) L X W X H mm | 1230 x 228 x 765 mm |
| SET DIMENSION (W/O STAND) L X W X H mm | 1230 x 90 x 715 mm |
| DIMENSION OF PACKING BOX L X W X H mm | 1350 x 170 x 840 mm |
